Product Description

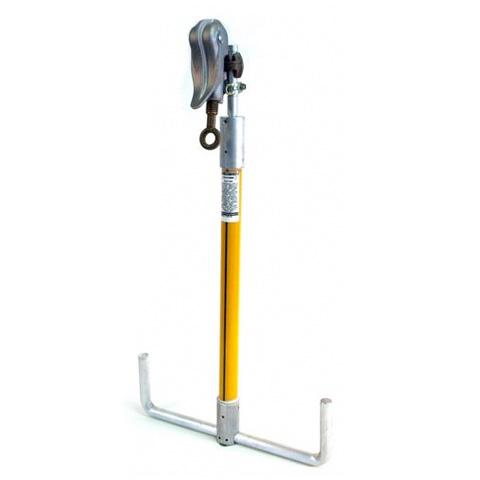

The Jumper-T is a versatile tool whenever using jumper leads or grounding leads. No need to purchase and or manipulate long lengths of heavy bulky cable. Simply use the Jumper-T to splice shorter lines which are easier to handle.

Each working side of the USJT-002 is unique. Made from 3/4″ diameter aluminum rod each working side has 6″ in horizontal length and 4″ in vertical length for easy jumper head connection. The horizontal portion of the working side functions as a standard Jumper-T. However, the vertical portion of each working side permits jumpers to be installed in a horizontal plane thereby minimizing sag and potential cross phasing situations.

The Jumper-T incorporates over 10″ of electrical rated high strength fiberglass to provide up to 34.5 kV operations. The aluminum T bar is sized to permit up to 300 amp service applications.

The duckbill top clamp will work on conductor sizes ranging from #6 solid copper (0.16″ diameter) minimum to 1033 MCM (1.25″ diameter) maximum.

If you require a special top clamp please call the factory. We may be able to modify the Jumper T to meet your specific needs.

• Product Dimensions: 26 1/2″ height x 12″ width
• Product Weight: 3 1/2″ lb.
