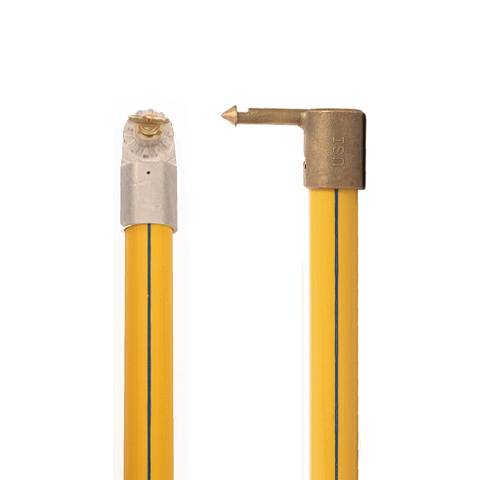

Fiberglass Straight Spline Stick

Click to View Price

Product Description

All Utility Solutions straight sticks are manufactured from the highest quality electrical grade fiberglass. Wall thickness has been engineered to provide the utmost in mechanical strength to meet the rigors of in field pushing, pulling or twisting of stubborn equipment. Each stick interior is filled with a high performance closed cell foam to prevent water ingress. The stick exterior has been chemically sealed to provide a smooth surface texture for easy cleaning.

Utility Solutions straight sticks meet or exceed all applicable industry performance criteria including ASTM F711, ASTM F1826 and OSHA Sub. V sec. 1926.951(d).

Custom design your own straight stick in the following manner.
First, determine the required stick length in feet, up to 10 foot maximum. This is the -0XX- part of the catalog number. For example, -006- is 6 foot, -010- is 10 foot, etc.

Lastly, choose the two end components for the stick, -YY- being the ends. Your selections: -SE- is universal spline end, -EC- is rubber end cap, -SH- is switchhead, -DH- is disconnect head.

If you desire a plastisol non-breakable metal hanger which is user adjustable buy USSA-HGR as another line item. Also, many other attachments can be ordered separately, but they require the SE end on at least one end of the straight stick.

Remember, protective bags are also available for this product offering.

  • Product length: Customer selected up to 10 foot maximum length.
  • Product weight: Variable. Estimated .5 pound per foot.

Additional Information

Weight 6 GBP
